Product families（Materials by component）

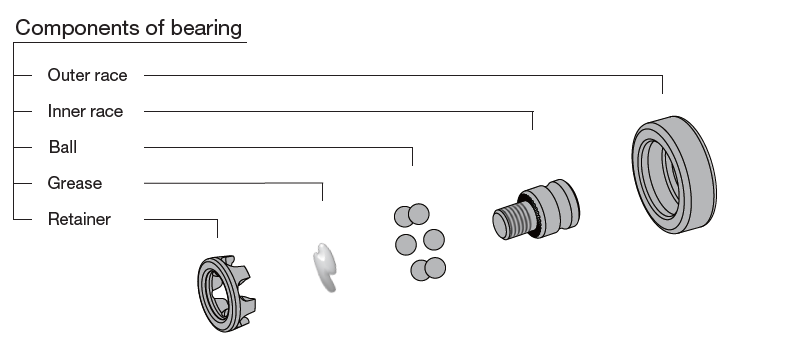

Basic structure and combination of plastic bearing

Product selection

Click the desired product series below to view the product details page.

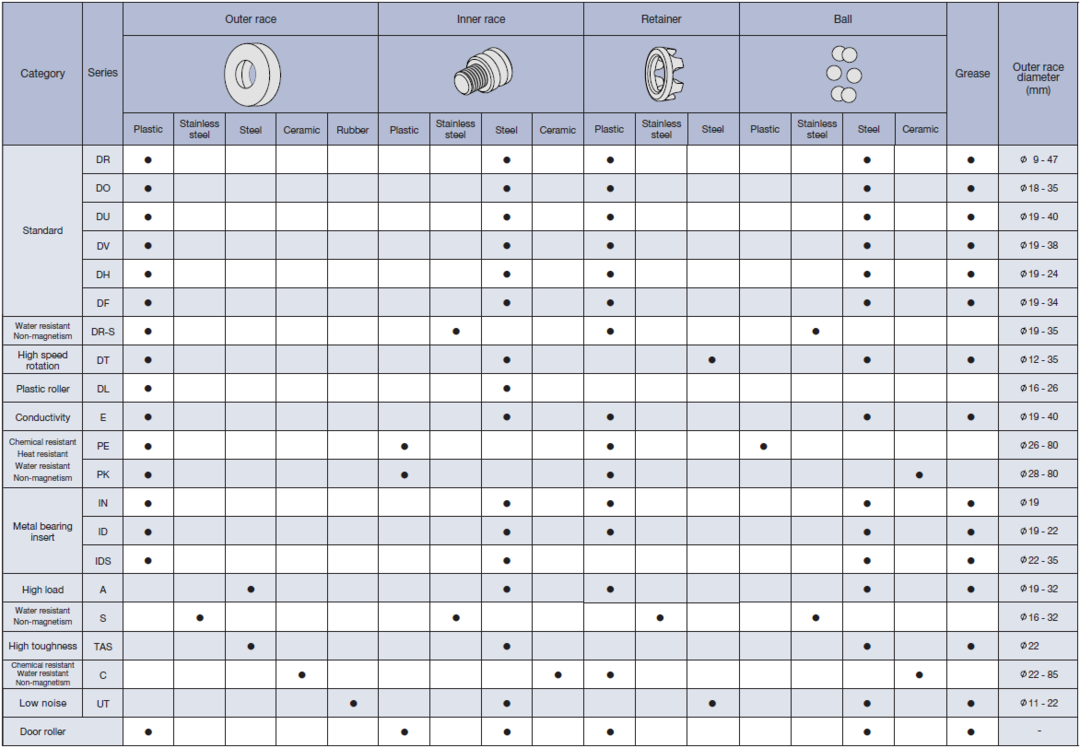

Category Outer race Inner race Retainer Ball
Plastic Stainless steel Steel Ceramic Rubber Plastic Stainless steel Steel Ceramic Plastic Stainless steel Plastic Stainless steel Steel Ceramic Grease
Standard DR-series ● ● ● ● ●
  DO-series ● ● ● ● ●
   DU-series ● ● ● ● ●
  DV-series ● ● ● ● ●
   DH-series ● ● ● ● ●
   DF-series ● ● ● ● ●
High speed rotation DT-series ● ● ● ● ●
　Plastic roller DL-series ● ●
Conductivity E-series ● ● ● ● ●
Metal bearing
insert		 ID-series ● ● ● ● ●
IDS-series ● ● ● ● ●
IN-series ● ● ● ● ●
Steel A-series ● ● ● ●
Toughness TAS-series ● ● ● ●
Water resistant DR-S-series ● ● ● ● ●
S-series ● ● ● ●
Chemical resistant PE-series ● ● ● ● ●
Chemical and heat
resistance		 PK-series ● ● ● ● ●
Chemical
resistance・Non-magnetism
 C-series ● ● ● ●
Rubber UT-series ● ● ●
Door-roller Door-roller-series ●

Related Articles

  1. Introducing the Optimal Product Series in a Q&A Format

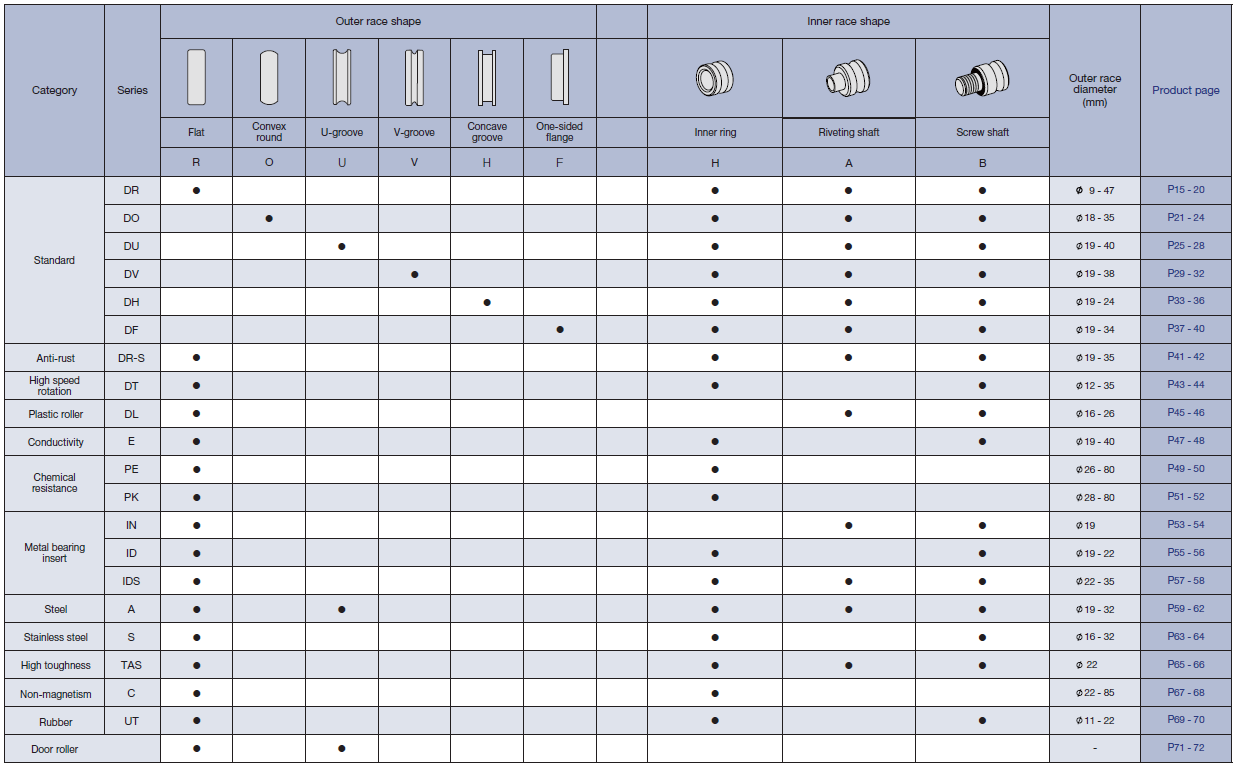

  2. Product families（selection by shape）
