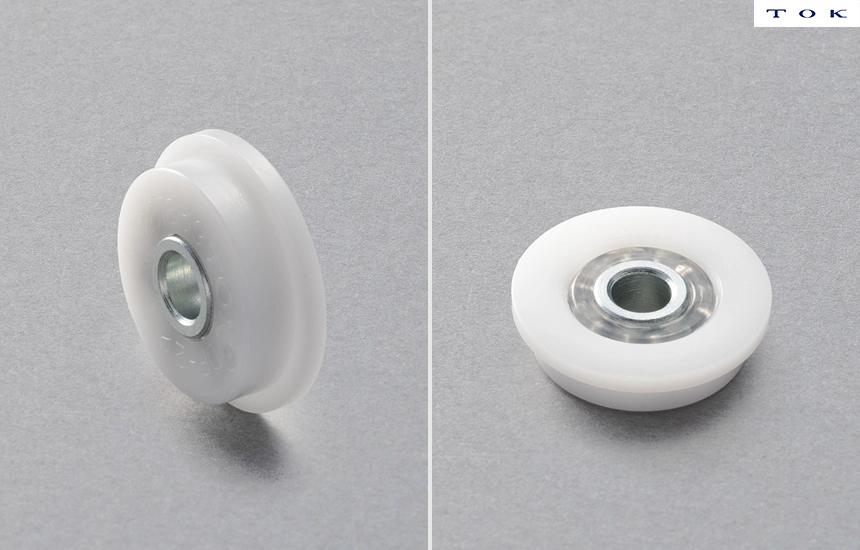

Products lineup
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||
| D | D1 | d | B | B1 | Da | JIS | Part No. | |
| 1 |
17 | 19 | 6 | 6 | 1 | 8.2 | 606 | DF-17-H6 |
| 19 | 22 | 6 | 7 | 1.5 | 9.5 | – | DF-19-H6-MC | |
| 22 | 26 | 6 | 7 | 2 | 9.5 | 636 | DF-22-H6-MU | |
| 8 | 11 | 608 | DF-22-H8 | |||||
| 26 | 32 | 6 | 7 | 2 | 9.5 | – | DF-26-H6 | |
| 30 | 34 | 6 | 8.5 | 3 | 14.5 | – | DF-30-H6-3 | |
| 10 | – | DF-30-H10-3 | ||||||
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||||
| D | D1 | d | B | B1 | C | C1 | Da | JIS | Part No. | |
| 2 | 17 | 16 | 6 | 6 | 1 | 1 | 1 | 8.2 | 606 | DF-17-H6W1 |
| 19 | 22 | 6 | 7 | 1.5 | 1 | 1 | 9.5 | – | DF-119-H6W1 | |
| 22 | 26 | 6 | 7 | 2 | 1 | 1 | 9.5 | 636 | DF-22-H6W1 | |
| 26 | 32 | 6 | 7 | 2 | 1 | 1 | 9.5 | – | DF-26-H6W1 | |
| 30 | 34 | 6 | 8.5 | 3 | 1 | 1 | 14.5 | – | DF-30-H6W1 | |
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | D | Polyacetal resin |
| ② | Outer race shape symbol | F | One-sided flange |
| ③ | Retainer or full ball type | Omitted | Retainer (Polypropylene) |
| ④ | Outer race outer diameter | – | (Numerical ΦD dimension shown in drawing) |
| ⑤ | Ball material symbol | Omitted | Carbon steel ball |
| ⑥ | Inner race shape symbol | H | Inner ring |
| ⑦ | Inner race material symbol | Omitted | Carbon steel (Plating) |
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical Φd/C dimension shown in drawing) |
| W | Inner race width (Wide type) & C/C1 dimension | ||
| ⑨ | Additional information | MU/MC | Plating *Including omitted |
| 3 | Numerical B1 dimension shown in drawing *Including omitted |
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
