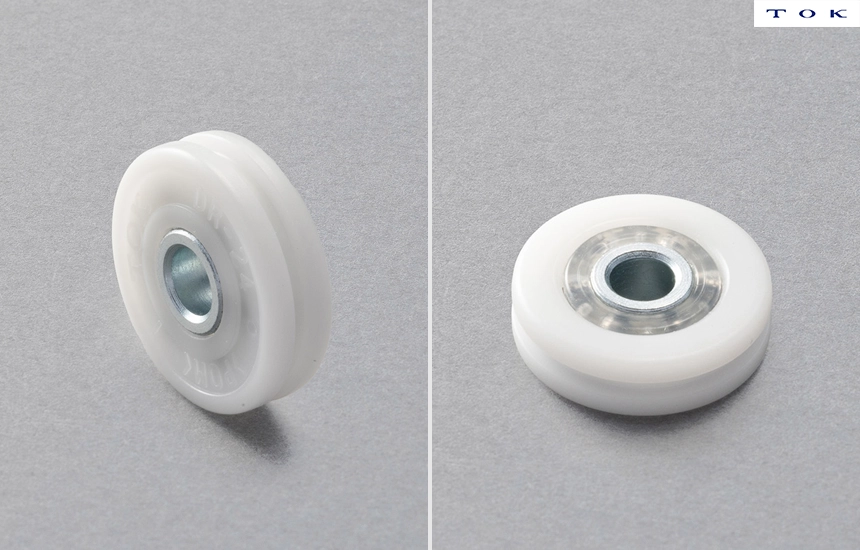

Products lineup
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | D | Polyacetal resin |
| ② | Outer race shape symbol | H | Concave groove |
| ③ | Retainer or full ball type | Omitted | Retainer (Polypropylene) |
| ④ | Outer race outer diameter | – | (Numerical φD1 dimension shown in drawing) |
| ⑤ | Ball material symbol | Omitted | Carbon steel ball |
| ⑥ | Inner race shape symbol | H | Inner ring |
| ⑦ | Inner race material symbol | Omitted | Carbon steel (Plating) |
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical φd/C dimension shown in drawing) |
| W | Inner race width (Wide type) & C/C1 dimension | ||
| ⑨ | Additional information | MC | Plating *Including omitted |
| 2/3 | (Numerical G dimension shown in drawing *Including omitted) |
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
