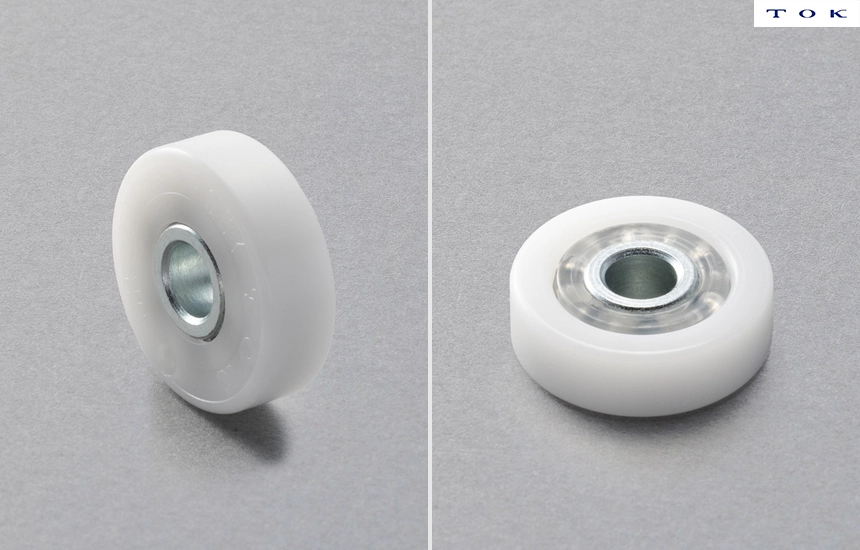

Products lineup
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||
| D | d | B | Da | JIS | Part No. | |
| 1 | 9 | 2.5 | 3 | 5.4 | – | DRS-9-H2.5 |
| 12 | 3 | 4 | 6.5 | – | DRS-12-H3 | |
| 2 |
17 | 6 | 6 | 8.2 | 606 | DR-17-H6 |
| 18 | 6 | 6 | 8.2 | – | DR-18-H6 | |
| 19 | 5 | 6 | 8.2 | 635 | DR-19-H5-MC | |
| 6 | 626 | DR-19-H6 | ||||
| 20 | 6 | 7 | 9.5 | – | DR-20-H6-MC | |
| 8 | 6 | 11 | – | DR-20-H8 | ||
| 22 | 6 | 7 | 9.5 | 636 | DR-22-H6-MU | |
| 7 | 627 | DR-22-H7 | ||||
| 8 | 11 | 608 | DR-22-H8 | |||
| 24 | 6 | 7 | 9.5 | – | DR-24-H6-MC | |
| 8 | 13 | – | DR-24-H8 | |||
| 26 | 6 | 7 | 9.5 | 629 | DR-26-H6-MU | |
| 9 | 8 | 13 | 6000 | DR-26-H9-MC | ||
| 10 | – | DR-26-H10 | ||||
| 28 | 6 | 7 | 9.5 | – | DR-28-H6-MC | |
| 30 | 6 | 7 | 9.5 | – | DR-30-H6-MC | |
| 10 | 9 | 14.5 | 6200 | DR-30-H10-9 | ||
| 32 | 12 | 10 | 17 | 6201 | DR-32-H12 | |
| 35 | 6 | 7 | 9.5 | – | DR-35-H6-MC | |
| 15 | 11 | 21 | 6202 | DR-35-H15 | ||
| 3 | 40 | 6 | 8 | 9.5 | – | DR-40-H6-MC |
| 2 |
17 | 12 | 21 | 6203 | DR-40-H17 | |
| 47 | 17 | 14 | 27 | 6303 | DR-47-H17 | |
| 20 | 6204 | DR-47-H20 | ||||

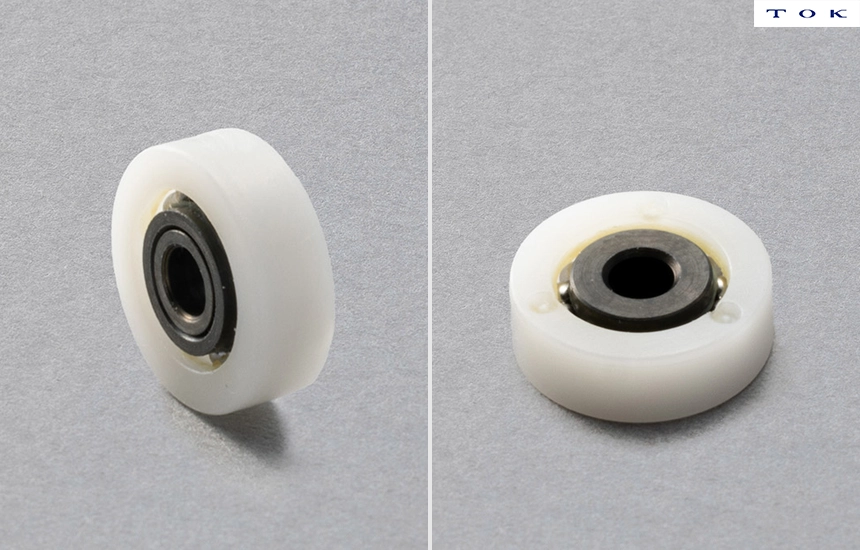

Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||
| D | d | B | C | C1 | Da | JIS | Part No. | |
| 4
|
16 | 4.1 | 4 | 0.25 | 0.25 | 8.5 | – | DR-16-H4.1W0.25-MC |
| 17 | 6 | 6 | 1 | 1 | 8.2 | 606 | DR-17-H6W1 | |
| 19 | 5 | 6 | 1 | 1 | 8.2 | 635 | DR-19-H5W1 | |
| 6 | 626 | DR-19-H6W1 | ||||||
| 22 | 6 | 7 | 1 | 1 | 9.5 | 636 | DR-22-H6W1 | |
| 7 | 11 | 627 | DR-22-H7W1 | |||||
| 8 | 608 | DR-22-H8W1 | ||||||
| 26 | 6 | 7 | 1 | 1 | 9.5 | – | DR-26-H6W1 | |
| 9 | 8 | 13 | 629 | DR-26-H9W1 | ||||
| 10 | 6000 | DR-26-H10W1 | ||||||
| 30 | 10 | 9 | 1 | 1 | 14.5 | 6200 | DR-30-H10W1 | |
| 32 | 12 | 10 | 1 | 1 | 17 | 6201 | DR-32-H12W1 | |
| 35 | 15 | 11 | 1 | 1 | 21 | 6202 | DR-35-H15W1 | |
| 40 | 17 | 12 | 1 | 1 | 21 | 6203 | DR-40-H17W1 | |
| 47 | 17 | 14 | 1 | 1 | 21 | 6203 | DR-47-H17W1 | |
| 20 | 27 | 6204 | DR-47-H20W1 | |||||
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | D | Polyacetal resin |
| ② | Outer race shape symbol | R | Flat |
| ③ | Retainer or full ball type | Omitted | Retainer (Polypropylene) |
| S | Full ball (Without retainer) | ||
| ④ | Outer race outer diameter | – | (Numerical D dimension shown in drawing) |
| ⑤ | Ball material symbol | Omitted | Carbon steel ball |
| ⑥ | Inner race shape symbol | H | Inner ring |
| ⑦ | Inner race material symbol | Omitted | Carbon steel (Plating, Black oxide treatment) |
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical D dimension shown in drawing) |
| W | W Inner race width (Wide type) & C/C1 dimension | ||
| ⑨ | Additional information | MC | Plating *Including omitted |
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
