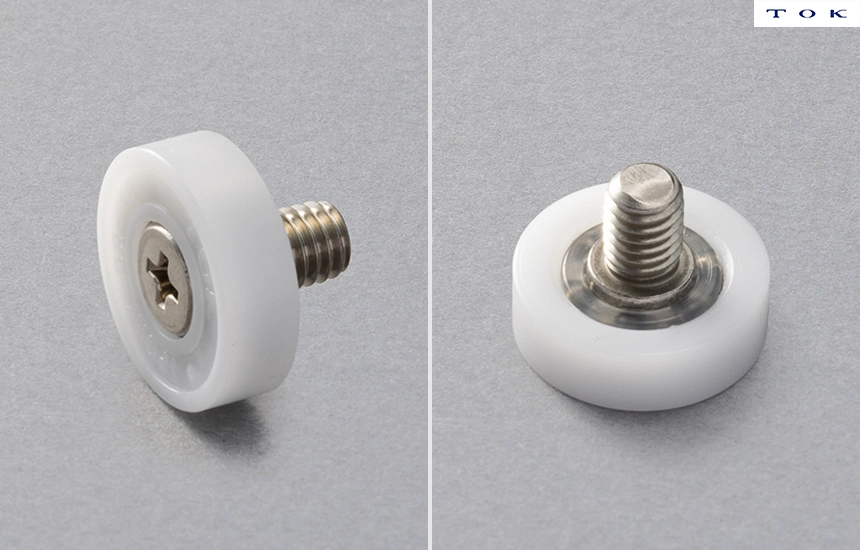

Products lineup
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||
| D | B | C | L | Da | Screw specification |
Rosette coined | Part No. | |
| 4 |
18 | 6 | 1 | 8 | 9 | M6 P1.0 | – | DT-18-BH1-L1260ZZ |
|---|---|---|---|---|---|---|---|---|
| 19 | 6 | 1 | 8 | 9 | M6 P1.0 | – | DT-19-BH1-L1260ZZ | |
| 20 | 6 | 1 | 8 | 9 | M6 P1.0 | – | DT-20-BH1-L1260ZZ | |
| 22 | 7 | 1 | 8 | 12 | M6 P1.0 | – | DT-22-BH1-688ZZ | |
| 24 | 8 | 1 | 8 | 9 | M6 P1.0 | – | DT-24-BH1-626ZZ | |
| 26 | 8 | 0.5 | 8 | 10 | M6 P1.0 | – | DT-26-BH0.5-626ZZ | |
| 1 | 9 | – | DT-26-BH1-626ZZ | |||||
| 2 | 9.5 | 10 | – | DT-26-BH2-9.5-626ZZ | ||||
| 4 | 8 | – | DT-26-BH4-626ZZ | |||||
| 6 | 14 | – | DT-26-BH6-14-626ZZ | |||||
| 30 | 9 | 1 | 8 | 12 | M6 P1.0 | – | DT-30-BH1-608ZZ | |
| 35 | 9 | 1 | 8 | 12 | M6 P1.0 | – | DT-35-BH1-608ZZ-9 | |
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | DT | Polyacetal resin *Precision bearing insert |
| ② | Outer race shape symbol | （R） | Flat *Omitted |
| ③ | Retainer or full ball type | Omitted | Retainer (Polypropylene) |
| ④ | Outer race outer diameter | – | (Numerical ΦD dimension shown in drawing) |
| ⑤ | Ball material symbol | Omitted | Carbon steel ball |
| ⑥ | Inner race shape symbol | BH | Inner ring with screw shaft |
| ⑦ | Inner race material symbol | Omitted | Bearing steel |
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical Φd/C dimension shown in drawing) |
| ⑨ | Additional information | – | The name of insert bearing |
| CB | Outer race color tone: black | ||
| – | Numerical B/L dimension shown in drawing *Including omitted |
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
