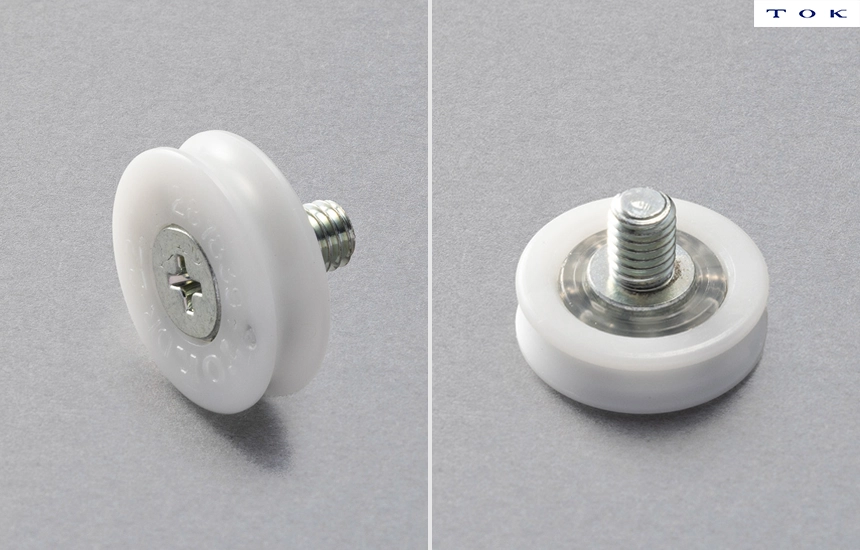

Products lineup
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||||
| D | D1 | B | C | L | R | Da | Screw specification |
Rosette coined | Part No. | |
| 1 | 19 | 17 | 6 | 0.5 | 8 | 1.75 | 8.2 | M6 P1.0 | – | DU-19-B0.5 |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 1 | ● | DU-19-B1-M6×8 | |||||||
| 2 | DU-19-B2 | |||||||||
| 1 | 22 | 19.2 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-22-B0.5 |
| 2 |
1 | ● | DU-22-B1 | |||||||
| 2 | DU-22-B2-M6×8 | |||||||||
| 1 | 24 | 21.2 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-24-B0.5 |
| 1 | 26 | 23.2 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-26-B0.5 |
| 1 | 28 | 24 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-28-B0.5-M6×8 |
| 1 | 30 | 25.7 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-30-B0.5 |
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||||
| D | D1 | B | C | L | R | Da | Screw specification |
Rosette coined | Part No. | |
| 3
|
22 | 19.2 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-22-B0.5-JH |
| 24 | 21.2 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-24-B0.5-JH | |
| 26 | 23.2 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-26-B0.5-JH | |
| 28 | 24 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-28-B0.5-JH | |
| 30 | 25.7 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-30-B0.5-JH | |
| 35 | 31 | 7 | 0.5 | 8 | 2.5 | 9.5 | M6 P1.0 | – | DU-35-B0.5-JH | |
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | D | Polyacetal resin |
| ② | Outer race shape symbol | U | U-groove |
| ③ | Retainer or full ball type | Omitted | Retainer (Polypropylene) |
| ④ | Outer race outer diameter | – | (Numerical φD dimension shown in drawing) |
| ⑤ | Ball material symbol | Omitted | Carbon steel ball |
| ⑥ | Inner race shape symbol | B | Screw shaft |
| ⑦ | Inner race material symbol | Omitted | Carbon steel (Plating) |
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical C dimension shown in drawing) |
| ⑨ | Additional information | JH | Hex socket screw |
| M6×8 | Screw specification × Screw length L dimension |
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
