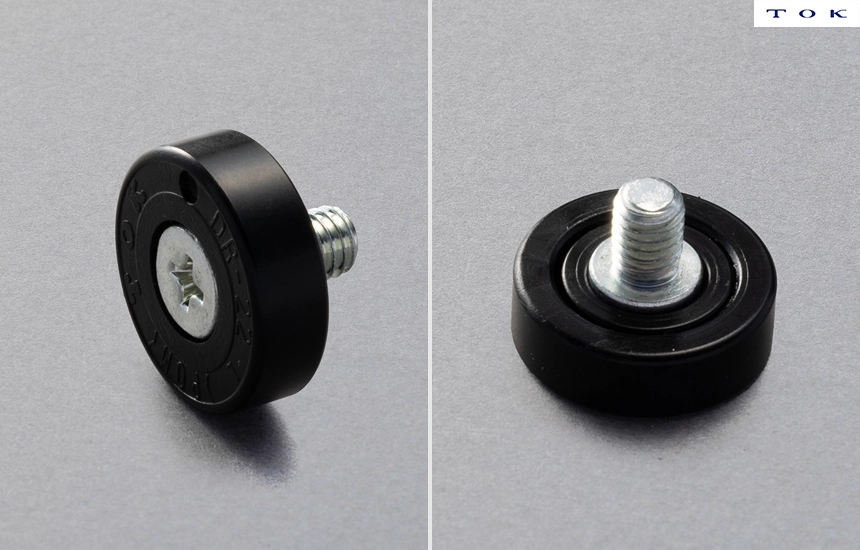

Products lineup
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||
| D | B | C | L | Da | Screw specification |
Rosette coined | Part No. | |
| 2 | 19 | 6 | 0.5 | 8 | 8.2 | M6 P1.0 | – | ER-19-B0.5 |
|---|---|---|---|---|---|---|---|---|
| 3 | 1 | ● | ER-19-B1-M6×8 | |||||
| 3 | 2 | ● | ER-19-B2-M6×8 | |||||
| 2 | 22 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-22-B0.5-M6×8 |
| 3 | 1 | 有 | ER-22-B1-M6×8 | |||||
| 3 | 2 | ● | ER-22-B2 | |||||
| 2 | 26 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-26-B0.5 |
| 2 | 30 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-30-B0.5-M6×8 |
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||
| D | B | C | L | Da | Screw specification |
Rosette coined | Part No. | |
| 4 | 22 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-22-B0.5-JH |
|---|---|---|---|---|---|---|---|---|
| 24 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-24-B0.5-JH | |
| 26 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-26-B0.5-JH | |
| 28 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-28-B0.5-JH | |
| 30 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-30-B0.5-JH | |
| 35 | 7 | 0.5 | 8 | 9.5 | M6 P1.0 | – | ER-35-B0.5-JH | |
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | E | Conductive resin |
| ② | Outer race shape symbol | R | Flat |
| ③ | Retainer or full ball type | Omitted | Retainer (Polypropylene) |
| ④ | Outer race outer diameter | – | (Numerical ΦD dimension shown in drawing) |
| ⑤ | Ball material symbol | Omitted | Carbon steel ball |
| ⑥ | Inner race shape symbol | B | Screw shaft |
| ⑦ | Inner race material symbol | Omitted | Carbon steel (Plating) |
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical Φd/C dimension shown in drawing) |
| ⑨ | Additional information | MC | Plating *Including omitted |
| M6×8 | Screw specification × Screw length L dimension | ||
| JH | Hex socket screw |
Please refer to the catalog for reference data on electrical resistance value.
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
