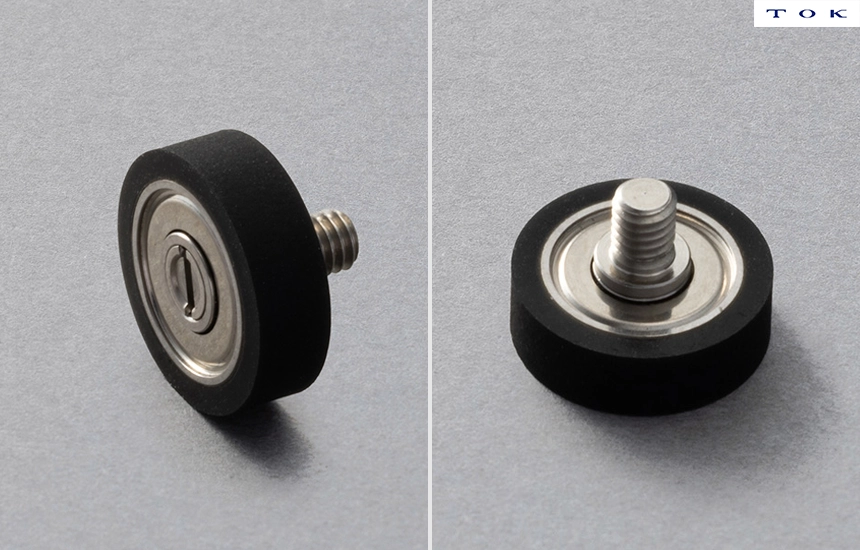

Products lineup
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||||||||
| D | D1 | B | B1 | C | L | b | b1 | Da | Screw specification |
Rosette coined | Part No. | |
| 3 |
11 | 8 | 4 | 9.2 | 1 | 4 | 0.8 | 1.2 | 5 | M3 P0.5 | – | UT-11-SBS1-M3×4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 8 | 4 | 9.2 | 1 | 4 | 0.8 | 1.2 | 5 | M3 P0.5 | – | UT-12-SBS1-M3×4 | |
| 13 | 8 | 4 | 9.2 | 1 | 4 | 0.8 | 1.2 | 5 | M3 P0.5 | – | UT-13-SBS1-M3×4 | |
| 14 | 8 | 4 | 9.2 | 1 | 4 | 0.8 | 1.2 | 5 | M3 P0.5 | – | UT-14-SBS1-M3×4 | |
| 15 | 13 | 5 | 11.2 | 1 | 5 | 0.8 | 1 | 6 | M4 P0.7 | – | UT-15-SBS1-M3×5 | |
| 16 | 13 | 5 | 11.2 | 1 | 5 | 0.8 | 1 | 6 | M4 P0.7 | – | UT-16-SBS1-A | |
| 17 | 13 | 5 | 11.2 | 1 | 5 | 0.8 | 1 | 6 | M4 P0.7 | – | UT-17-SBS1-M4×5 | |
| 18 | 12 | 4 | 13.3 | 1 | 8 | 1 | 1.5 | 8 | M6 P1.0 | – | UT-18-SBS1-M6×8 | |
| 19 | 12 | 4 | 13.3 | 1 | 8 | 1 | 1.5 | 8 | M6 P1.0 | – | UT-19-SBS1-M6×8 | |
| 20 | 12 | 4 | 13.3 | 1 | 8 | 1 | 1.5 | 8 | M6 P1.0 | – | UT-20-SBS1-A | |
| 21 | 12 | 4 | 13.3 | 1 | 8 | 1 | 1.5 | 8 | M6 P1.0 | – | UT-21-SBS1-M6×8 | |
| 22 | 12 | 4 | 13.3 | 1 | 8 | 1 | 1.5 | 8 | M6 P1.0 | – | UT-22-SBS1-M6×8 | |
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | UT | Polyurethane resin |
| ② | Outer race shape symbol | （R） | Flat *Omitted |
| ③ | Retainer or full ball type | Omitted | Retainer (Double-sealed) |
| ④ | Outer race outer diameter | – | (Numerical ΦD dimension shown in drawing) |
| ⑤ | Ball material symbol | Omitted | Carbon steel ball |
| S | Stainless ball | ||
| ⑥ | Inner race shape symbol | B | Screw shaft |
| ⑦ | Inner race material symbol | Omitted | Bearing Steel |
| S | Stainless steel | ||
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical Φd/C dimension shown in drawing) |
| ⑨ | Additional information | M-×- | Screw specification × Screw length L dimension |
| A | Identification symbol |
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
