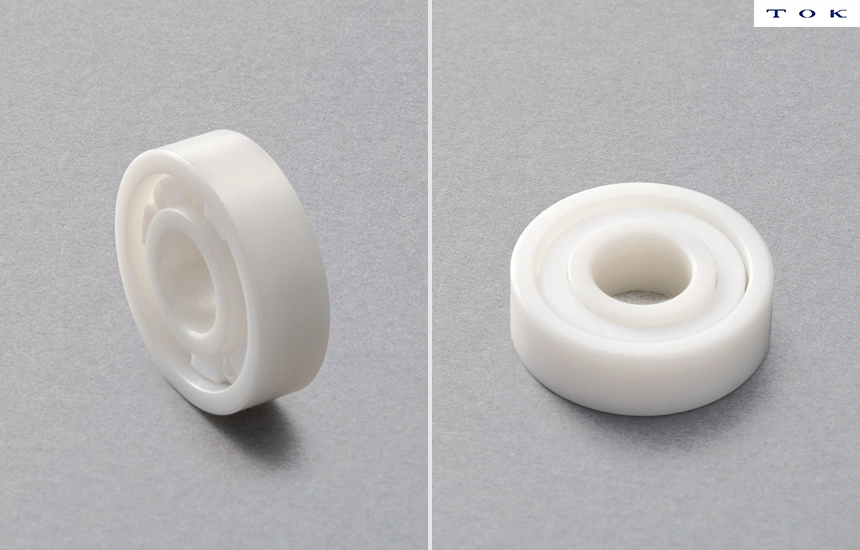

Products lineup
Please refer to the catalog for detailed dimensional information.
| Model | Boundary dimensions [mm] | |||||
| D | d1 | B | Da | JIS | Part No. | |
| 1 | 22 | 10 | 6 | 13.5 | 6900 | C-22-CHC10 |
| 2 | 26 | 10 | 8 | 14.6 | 6000 | C-26-CHC10 |
| 28 | 12 | 8 | 17.4 | 6001 | C-28-CHC12 | |
| 30 | 10 | 9 | 17.0 | 6200 | C-30-CHC10 | |
| 32 | 12 | 10 | 18.3 | 6201 | C-32-CHC12 | |
| 15 | 9 | 20.3 | 6002 | C-32-CHC15 | ||
| 35 | 15 | 11 | 21.2 | 6202 | C-35-CHC15 | |
| 17 | 10 | 22.8 | 6003 | C-35-CHC17 | ||
| 40 | 17 | 12 | 24.6 | 6203 | C-40-CHC17 | |
| 42 | 20 | 12 | 26.9 | 6004 | C-42-CHC20 | |
| 30 | 7 | 33.2 | 6806 | C-42-CHC30 | ||
| 47 | 20 | 14 | 29.5 | 6204 | C-47-CHC20 | |
| 25 | 12 | 31.8 | 6005 | C-47-CHC25 | ||
| 52 | 25 | 15 | 34.0 | 6205 | C-52-CHC25 | |
| 55 | 30 | 13 | 38.4 | 6006 | C-55-CHC30 | |
| 62 | 30 | 16 | 40.8 | 6206 | C-62-CHC30 | |
| 25 | 14 | 43.3 | 6007 | C-62-CHC35 | ||
| 68 | 40 | 15 | 48.8 | 6008 | C-68-CHC40 | |
| 72 | 35 | 17 | 46.8 | 6207 | C-72-CHC35 | |
| 80 | 40 | 18 | 52.6 | 6208 | C-80-CHC40 | |
| 85 | 45 | 19 | 58.2 | 6209 | C-85-CHC45 | |
Components of product name
If you would like to know more about the meaning of the product name codes, please see the configuration of part numbers.
| No | Item | Symbol | Meaning |
| ① | Outer race material symbol | C | Ceramic |
| ② | Outer race shape symbol | （R） | Flat *Omitted |
| ③ | Retainer or full ball type | Omitted | Retainer (PTFE) |
| ④ | Outer race outer diameter | – | (Numerical ΦD dimension shown in drawing) |
| ⑤ | Ball material symbol | C | Ceramic ball |
| ⑥ | Inner race shape symbol | H | Inner ring |
| ⑦ | Inner race material symbol | C | Ceramic |
| ⑧ | Bore and clearance dimension for mounting | – | (Numerical Φd dimension shown in drawing) |
| ⑨ | Additional information | （GN） | No grease *omitted |
*All products are basically made to order, but some items may be in stock. Please contact your distributor or dealer for availability.
Please refer to the catalog for information regarding the materials and corrosion resistance of the bearing components.
